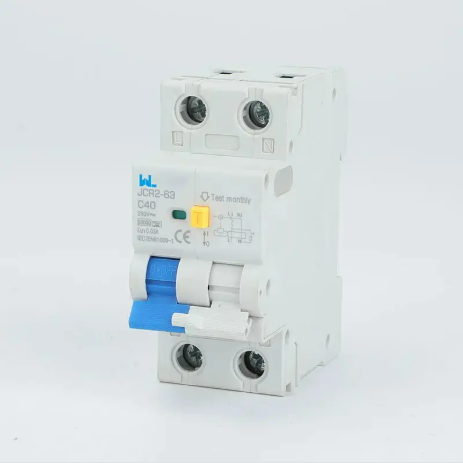

RCBO for EV Charger 10kA Differential circuit breaker JCR2-63 2 Pole 1

Simultaneous with the propagation of electric vehicles (EVs), I think that the safety and operational efficiency of EV charging installations should be well safeguard. One of the components of this is electric protection of charging system, namely Residual Current Circuit Breaker with Overload Protection (RCBO). Such as JCR2-63 RCBO, which is an outstanding device with strong protection against electric faults in EV charging systems.

Shrinking the RCBO’s

An RCBO is an electrical device used for both residual current protection and overcurrent protection through a MCB. An RCBO is effective against residual ground proofing current as well as overheating and overload currents. An RCBO is essential for electric vehicle charging stations where heavy amounts of power is drawn.

Features

The JCR2-63 is an RCBO specifically designed and manufactured for the ever increasing scope of modern electrical installations, particularly for Electric Vehicle (EV) charging stations. Its extensive range of features provides effective security and functional performance in almost equal measures:

This showcases the ability of the RCBO to interrupt fault currents with a damaging value for up to ten thousand (10,000) amperes. The equipment won’t be damaged at such a high breaking capacity. Those environments where the risk of short-circuit currents is significant require this level of protection, which ensures that the circuit is adequately safeguarded by being disconnected upon the occurrence of fault situations.

A Broad Spectrum of Rated Amps (6A to 63A): JCR2-63 has a variety of rated current options from 6A to 63A, loaded with different types of electrical loads. This variety enables the device to along with restiction, receiving maximum protection whether it is load residential circuits or commercial power installations.

Tripping Curves (B, C): Response of the RCBO to overcurrent conditions is described by various types of tripping curves. While the B curve is specifically designed for sensitive devices by tripping at overcurrents lower than B, the C curve is designed to withstand higher inrush currents encountered with inductive load circuits containing motors or transformers. The proper selection of the tripping curves will ensure that necessary protection is provided while maintaining the required continuity of operations.

Tripping Sensitivity Options (30mA, 100mA, 300mA): Sensitivity defines the value of the residual current at which the RCBO will turn on. A sensitivity of 30mA is used mainly to protect persons exposed to dangerous electric shocks resulting from leakage currents. Higher levels of sensitivity such as 100mA or 300mA are used for equipment or fire protection to reduce damage when some leakage is acceptable, but there is a need to prevent faults.

Type A And AC Type Variants: RCBO will classify Type A and Type AC depending on its capability to detect various types of residual currents. Type AC devices, which function general-purpose applications, are able to respond to alternating currents, while advanced Type A devices respond to both electric and pulsating direct currents. Such direct current residuals are usually created by modern electronic appliances such as EV chargers.

Double Pole Disconnection With Switch: This characteristic means that, in a fault condition, disconnection occurs for both the live and neutral conductors simultaneously. During complete isolation of the circuit, the safety is enhanced during maintenance tasks as there is no possible way of being electrocuted with a live neutral wire.

Neutral Pole With Switch: Disconnecting at Neutral pole can provide better personal protection, preventing the risk of electric shock to people. At the same time, it also makes the troubleshooting of faults during the maintenance of electrical wiring lines much easier and simpler.

Compliance of IEC Standards 61009-1 and EN-61009-1: The JCR2-63 RCBO has an assurance of dependability, interoperability, and trust in multiple installation locations. The assurance of these international standards is dependant on their history and coverage which guarantees fulfilling advanced safety and performance regulations, protection, and safeguard from failure.

Relevance of EV Charging Installation Services

Charging stations undergo a very complex and powerful charging process. As a result, these stations need to be highly reliable and safe. The JCR2-63 RCBO meets these requirements perfectly:

Fault Protection Technology: It defends against some electrical malfunctions, like earth leak protection, overloads, and short circuits that can endanger users and equipment.

User Protection Technology: Electric shocks to anyone using the charging station is avoided by residual current detection and disconnection.

Technical Notes

Connecting the JCR2-63 RCBO into an electric vehicle charging system is simple. It is designed to fit conveniently into a consumer unit or distribution board. Also, the double handle control allows for increased security and comfort. Additionally, neutral pole switching is not only a safety feature but is also an efficiency feature for ease of installation.

Where to Buy the JCR2-63 RCBO

As an industry frontrunner in providing electrical safety solutions, W9 Group sells the JCR2-63 RCBO with the assurance of international quality standards being followed. The W9 Group is known for offering top-notch solutions and this RCBO is designed specifically for charg EV charging systems, making it an essential component for added safety and reliability. For purchases and additional information, please check out the product link: JCR2-63 RCBO for EV Charger 10kA Differential Circuit Breaker 1P+N 2 Pole. Contact us on WhatsApp: +8615906878798.

Final Remark

As the world increasingly adopts electric vehicles, the need to foremost ensure user safety as well as the efficient functioning of the charging infrastructure increases more and more. The JCR2-63 RCBO is perfect for offering simplicity with functionality, and protective features with ease of installation. Incorporating this device not only assists in complying with the set international standards of safety, but also guarantees a dependable, secure charging platform for users. Without a doubt, integrating these components such as the W9 Group JCR2-63 adds reliability to the device and takes us a step closer to achieving a more advanced, electric future.
