The JCB2LE-80M RCBO: Comprehensive Protection for Electrical Systems

Mar-13-2025
wanlai electric

In today’s highly interconnected world, electrical systems are the backbone of nearly every aspect of modern life, from industrial operations to residential homes. An obligation to protect these systems against malfunctions that could result in hazardous circumstances, such as electrical shocks, fires, or expensive equipment damage, comes with such reliance on electricity. The Residual Current Circuit Breaker with Overload safety (RCBO), which offers crucial electrical circuit safety, enters the picture here.

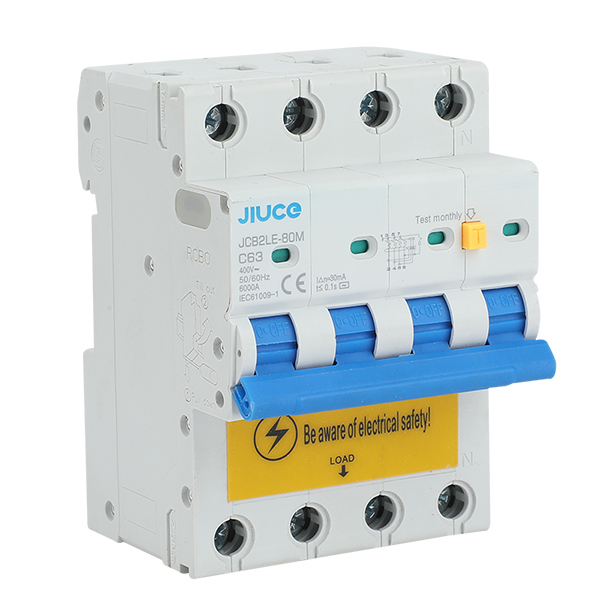

These safety requirements are met by the JCB2LE-80M4P, a 4-pole RCBO with alarm and 6kA safety switch circuit breaker. As such, it is an essential tool for a variety of applications, from commercial installations and high-rise buildings to industrial sectors and residential homes. . This article will explore the main features, benefits, and applications of the JCB2LE-80M4P RCBO while highlighting how this device helps ensure higher protection in diverse environments.




What is an RCBO?

An RCBO (Residual Current Circuit Breaker with Overload Protection) is a type of electrical protection device that combines two key safety features:

Residual Current Protection:

This feature detects leakage currents when electrical current strays from its intended path, potentially causing electrical shocks or fires. The RCBO trips and disconnects the circuit when leakage is detected, preventing potential hazards.

Overload Protection:

The RCBO also protects against overload conditions by automatically cutting off the electrical supply when the current exceeds safe levels for an extended period. This prevents overheating and fire risks caused by prolonged overloading.

With extra features like a high breaking capacity, adjustable trip sensitivity, and electronic protection, the JCB2LE-80M4P RCBO goes above and beyond, making it a dependable and adaptable option for guaranteeing electrical safety.

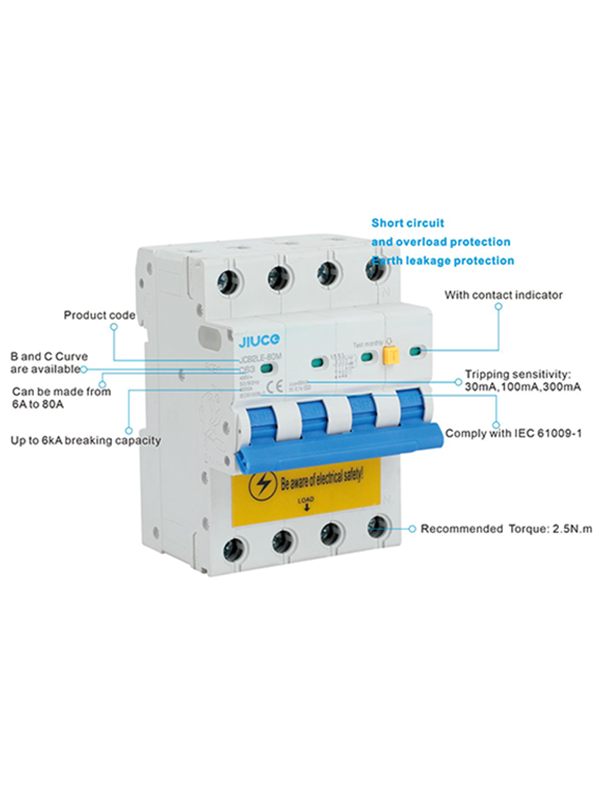

Main Features of the JCB2LE-80M4P RCBO

The JCB2LE-80M4P has a remarkable number of features, all of which help to make it an excellent choice for complete electrical system protection. The salient characteristics that distinguish it are as follows:

1. Complete Protection with an Electronic 4-Pole

All four conductors of a three-phase electrical system are protected by the electronic four-pole RCBO JCB2LE-80M4P. Complete protection is guaranteed by the four-pole design, which covers earth, neutral, and live lines. This makes it perfect for intricate configurations in high-rise, commercial, and industrial buildings.


2. Leak Prevention to Boost Security

Electrical safety depends on the RCBO’s capacity to identify leakage or residual currents. . This protection improves safety by quickly disconnecting the circuit in case of leakage, reducing the risk of electrical shocks or fires.

3. Overload and Short Circuit Protection for Reliable Performance

The JCB2LE-80M4P protects against overload and short circuit conditions, ensuring the circuit remains safe even in high-demand scenarios. This comprehensive protection is important for appliance for heavy industrial machinery, the JCB2LE-80M4P can protect the circuit while ensuring performance across multiple applications.

5. Breaking Capacity Up to 6kA for Strong Protection

The JCB2LE-80M4P boasts a breaking capacity of 6kA, meaning it can safely handle fault currents as high as 6,000 amperes without damaging the circuit breaker. This level of protection is crucial in high-risk environments, such as industrial settings, where short-circuit currents can be substantial.

6. Rated Current Up to 80A with Multiple Options from 6A to 80A

With adjustable options ranging from 6A to 80A, the JCB2LE-80M4P has a rated current capacity of up to 80A. Whether it’s a tiny home setup or a large commercial system, this broad range enables exact selection based on the requirements of the particular installation.

7. Tripping Curves for Flexibility in Types B and C

The JCB2LE-80M4P provides Type B and Type C tripping curves, offering flexibility in how the RCBO reacts to overloads and short circuits. Type B tripping curves are suitable for light residential loads. In contrast, Type C curves are ideal for circuits with moderate to heavy inductive loads, commonly found in commercial and industrial applications.

8. Trip Sensitivity for Tailored Protection: 30mA, 100mA, and 300mA

The JCB2LE-80M4P offers 30mA, 100mA, and 300mA trip sensitivity settings for protection. This improves for safety by allowing users to choose the sensitivity level that best fits their particular application.

9. Variants of Type A or AC to Meet Various Needs

The JCB2LE-80M4P is available in Type A or AC variants to meet protection requirements. Type A is ideal for circuits involving electronic devices. At the same time, AC is best suited for applications where alternating current (AC) is the primary electrical power short circuits when setup and guarantees convenience during installation.

10. Insulated Openings for Easy Busbar Installation

This feature ensures convenience during installation and reduces the chances of accidental short circuits during setup.

11. 35mm DIN Rail Installation

The JCB2LE-80M4P can be installed on a 35mm DIN rail for convenience, guaranteeing a tight fit and a simple installation procedure. Because of its easy-to-use and safe features, engineers and electricians can use the device.

12. Various Combination Head Screwdriver Compatibility

Because the RCBO works with a variety of combination head screwdrivers, installation and maintenance are made quick and easy. Because of this compatibility, there is less downtime and the equipment is kept in top operating shape.

13. Compliance with Industry Standards

The JCB2LE-80M4P meets critical safety and performance standards, including IEC 61009-1 and EN61009-1, ensuring it complies with international regulations. Additionally, it meets the ESV’s additional testing and verification requirements for RCBOs, guaranteeing that the product performs reliably under all conditions.

Applications of the JCB2LE-80M4P RCBO

With its feature set, the JCB2LE-80M4P may be used in a wide range of industries.

The main areas where this RCBO shines are listed below:

1. Industrial Installations

In industrial with heavy loads and machinery, the JCB2LE-80M4P offers protection against short circuits, overloads, and leaks. Its large breaking capacity and broad current range make it ideal for demanding industrial applications.

2. Commercial Structures

Complex electrical systems in commercial buildings including retail centers, office complexes, and hospitals are reliably protected by the JCB2LE-80M4P. It can be adjust to different loads thanks to its Type B and Type C tripping curves, guaranteeing both safety and effective operation.

3. High-Rise Buildings

The JCB2LE-80M4P’s 4-pole design is especially beneficial in high-rise buildings, which often require three-phase electrical systems. The RCBO protects all poles, preventing faults from affecting multiple floors or systems.

4. Residential Homes

For homes with advanced electrical setups, such as large appliances or home automation systems, the JCB2LE-80M4P provides essential protection against electrical shocks, overloads, and potential fire hazards. Its trip sensitivity options also allow homeowners to customize the level of security based on their specific needs.

Purchasing a High-Quality RCBO Guarantees Peace of Mind.

The JCB2LE-80M4P RCBO with alarm and 6kA safety switch circuit breaker is a robust and reliable safety device that ensures comprehensive protection for electrical systems across various applications. With features like 4-pole protection, high breaking capacity, customizable trip sensitivity, and easy installation options, it is a versatile choice for industrial, commercial, and residential setups.

The JCB2LE-80M4P RCBO is made to protect lives, stop damage, and improve the dependability of electrical systems by keeping to tough international safety requirements and offering cutting-edge protection methods. In any electrical configuration, purchasing a high-quality RCBO guarantees long-term safety and peace of mind.
